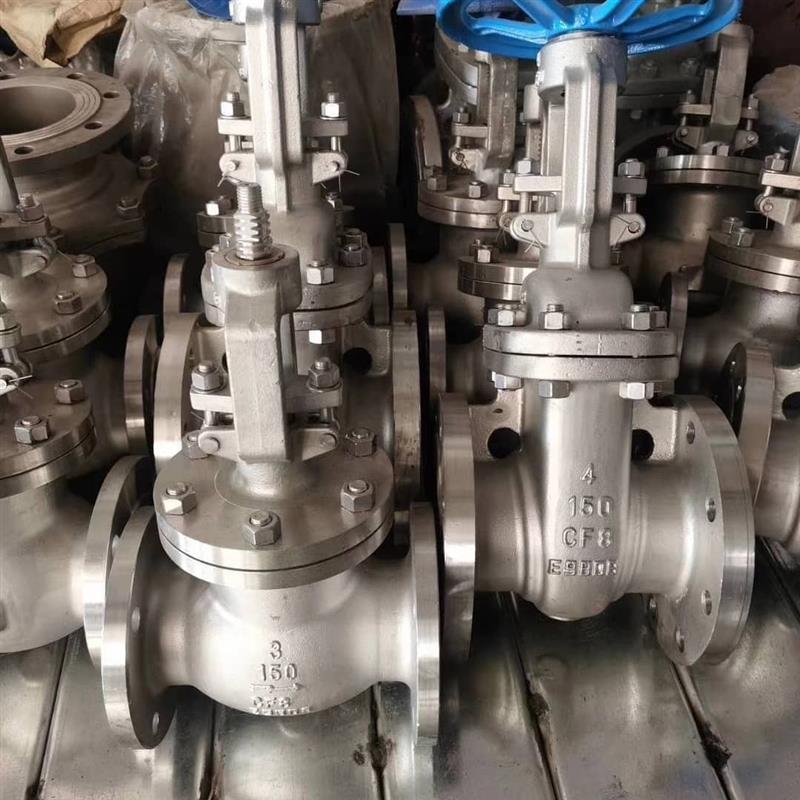

Valve Leakage Issues in Water and Utility Systems

Valves are essential in water and utility systems for controlling flow, separating pipelines, and preserving operational safety. Engineers looking for gear from a trustworthy Valve Manufacturer in India depend on very accurate technical specifications to guarantee system integrity. Speciality Valve and other sites give in-depth analysis of valve types, sealing techniques, and performance across a range of temperatures and pressures. Valve leakage is still a big problem even if the design is good and the manufacturing is done well. It can lower efficiency, make things less reliable, and make things less safe in water distribution and utility networks.

Valve leakage can happen because of how it’s made, what it’s made of, how it’s used, or if it wasn’t made exactly right. Engineers and designers need to know the different kinds of valves, how they leak, what technical things to look for, and how to test them. This will help them choose the right equipment for long-lasting, safe water systems.

How Valves Work in Water Systems

Valves control, direct, or separate water flow inside pipes using mechanical means. Valves can offer on/off control, flow throttling, or backflow prevention depending on their design. They have to run effectively in water systems despite changing pressures and diverse water quality. Important technical factors are:

• Pressure Ratings: PN10–PN40 (1–4 MPa)

• Temperature Range: 0°C–120°C (typical potable water systems)

• Size Range: 15 mm–1200 mm

• End Connections: Flanged, threaded, or welded

• Operation Type: Manual, electric, or pneumatic actuation

A well-chosen valve guarantees minimal pressure drop, precise flow control, and safe isolation. But because of operational stress, material wear, or design flaws, even valves that are correctly chosen can start to leak over time.

Common Types of Valves in Water and Utility Systems

Every valve design has unique elements that influence leakage performance. While ball valves provide tight shut-off with little internal leakage when correctly sized, globe valves are intended for exact flow control and might be more prone to seat wear.

Types of Valve Leakage

Valve leakage is categorized into two main types:

• Internal Leakage: This happens when water gets around the valve closure. When the valve is closed, water can get past the seat and let fluid flow through. It can come from wear over time, wrong valve type choice, garbage build-up, or seat damage.

• External Leakage: Fluid leaks from the valve body, bonnet, or stem region. Causes comprise poor assembly of flanges and joints, worn or loose gaskets, or damaged packing.

Pressure loss, contamination risk, energy inefficiency, or diminished operational reliability may result from even little leakage. Internal leakage in municipal water systems can introduce bacteria into drinking water if a valve does not seal correctly.

Operational Consequences of Valve Leakage

Knowing the consequences of leakage emphasizes the need of appropriate valve choice::

1. Pressure Loss: Leaks reduce system pressure, which impacts downstream operations and water supply.

2. Flow Instability: Inconsistent flow rates brought on by internal leakage can affect system performance and pumping efficiency.

3. Energy Inefficiency: Regularly making up for leaks with pumps raises energy usage.

4. Safety Risks: Leaks in high-pressure utility systems can cause stress on piping or localized corrosion.

5. Water Contamination: Particularly in potable water systems, leaks raise the risk of contamination entry.

Common Causes of Valve Leakage

Several factors contribute to leakage in water systems:

• Material Incompatibility: Valve seats or bodies can be degraded by water chemistry induced corrosion or erosion.

• Operating Beyond Design Limits: Overpressure, heat, or repeated cycling can compromise sealing surfaces.

• Debris in Water: Gate, globe, or ball valves might not completely shut if solids get in the way.

• Manufacturing Tolerances: Tight sealing depends much on surface finish, correct machining, and seat alignment.

• Incorrect Installation or Handling: Over-torquing or misalignment could cause packing components or sealing surfaces to warp.

Dealing with these issues early on in the design and selection process lowers the likelihood of leakage and guarantees a longer lifespan.

Technical Considerations to Minimize Leakage

Key features and specifications impact a valve’s sealing performance:

• Sealing Mechanisms: For low-to-medium pressure systems, soft seats (PTFE, rubber) offer firm closure; metal-to-metal seats are strong for high-pressure uses.

• Stem and Packing Design: Live-loaded or spring-loaded packing keeps the pressure the same over time, which stops leaks from happening.

• Differential Pressure Across Valve: Too much pressure drop can damage valve components, which causes more leakage inside.

• Valve Actuation: To guarantee full closing free from overstressed valve, manual, pneumatic, or electric actuators need to be suitably sized.

• Temperature Resistance: Valves have to run within their specified temperature range to prevent material breakdown or seal damage.

Material Selection for Water Valves

Selecting proper body and seal materials is crucial in controlling leakage. Below is a reference table:

Material choice directly impacts valve longevity, sealing efficiency, and internal/external leakage resistance.

Inspection and Testing Standards

Proper testing ensures valves meet operational specifications and reduces leakage risk:

• Hydrostatic Testing: Confirms body and bonnet can handle rated system pressure.

• Seat Leakage Test: Measures internal leakage against ANSI/FCI standards.

• Visual Inspection & Pressure Monitoring: Detects external leakage from packing, joints, and flanges.

• Endurance Testing: Simulates repeated opening/closing cycles to detect potential seat or packing wear.

In metropolitan and industrial water systems where dependability is paramount, well-documented inspection and testing procedures are particularly crucial.

Special Features Affecting Leakage

Modern valves may include design enhancements to control leakage:

• Double-Sealed Stems: Even while packing deteriorates with time, lower the chance of outside leakage.

• Fire-Safe Design: Under high temperatures, preserves sealing integrity.

• Metal-to-Metal or Soft Seats: Chosen depending on operational pressure and temperature criteria to reduce internal leakage.

• Anti-Cavitation Design: Prevents internal damage from high-velocity flow, which could impair sealing surfaces.

These characteristics let valves stay tightly sealed even when they are being used in tough conditions.

Applications in Water and Utility Systems

Valve leakage concerns affect multiple water-related systems:

• Municipal water distribution networks

• Industrial water supply

• Sewage and wastewater pipelines

• Irrigation and utility infrastructure

• Fire protection systems

Every application has particular material, temperature, and pressure needs that affect valve choice and leakage probability. Engineers should take these issues into account when choosing valve specifications and designing systems.

Conclusion

In water and utility systems, valve leaking is a major issue since it has a big impact on how well things work, how safe they are, and how efficient they are. Engineers can lower the possibility of leaks and improve system dependability by closely evaluating material compatibility, pressure ratings, temperature ranges, and sealing systems. Working with a reliable Valve Manufacturer in India and reading technical advice on Speciality Valve guarantees availability of premium valves made for reliable performance. Good decisions lead to better, long-lasting water networks, hence careful analysis of specifications and performance data helps to guide decisions and hence promotes safer, long-lasting water networks.

Review of technical specifications and leakage performance data enables engineers and system designers to maximize water system reliability without depending only on broad recommendations.
