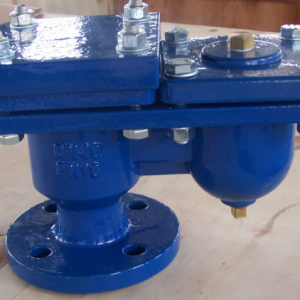

Double Orifice Kinetic Air Valve

From: 75.00 From: 61.17

From: 75.00 From: 61.17
Clear
Custom Enquiry

Description

Double Orifice Kinetic Air Valve

1. Body: Cast iron, Ductile Iron

2. Ball 1: SS304

3. Bolt: Carbon Steel

4. Nut: Carbon Steel

5. Bolt: Carbon Steel

6. Large Orifice Ball Seal: NBR

7. Large Cover 1: Cast Iron, Ductile Iron

8. Large Cover 2: Cast Iron, Ductile Iron

9. Ball 2: SS304

10. Small Orifice Ball Seal: Cast Iron, Ductile Iron

11. Small Cover: Cast Iron, Ductile Iron

12. Nut: Brass

Nominal Diameter: DN40 to DN250

Nominal Pressure: Class150 to Class300, PN16 to PN40

Design and Manufacture Standard: DIN3352

Flanged End Dimension: DIN2501

Inspection and Test: BS6755

Dimensions                                                                                                Unit: mm

PN16

DN A C D фD ФD1 ФD2 n-d b f
40 215 115 187 150 110 84 4-19 19 2
50 215 115 187 165 125 99 4-19 19 3
65 215 115 187 185 145 118 4-19 19 3
80 240 145 230 200 160 132 8-19 19 3
100 285 145 300 220 180 156 8-19 19 3
150 385 190 369 285 240 211 8-23 19 3
200 500 205 398 340 295 266 12-23 20 3
250 630 235 452 405 355 319 12-28 22 3
