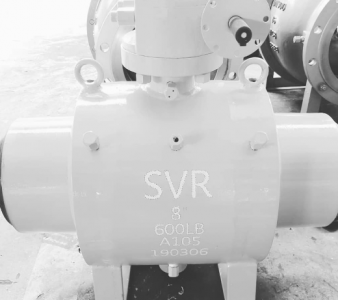

Fully Welded Ball Valve

From: 890.00 From: 778.00

From: 890.00 From: 778.00
Clear
Custom Enquiry

Description

Fully Welded Ball Valve

Body: WCB, A105, SS304, SS316, F11

Ball: Stainless Steel

Stem: Stainless Steel

Seal: PTFE

Packing: Flexible Graphite

Gasket: PTFE

Packing Ring: WCB, A105, SS304, SS316

Nominal Size: DN40 to DN600

Nominal Pressure: PN16 to PN40, Class150 to Class1500

Operation: Handwheel, Electric Actuated, Pneumatic Actuated

Dimensions

Class 150
Size in 2 3 4 6 8 10 12 14 16 18 20 22 24
D mm 49 74 100 150 201 252 303 334 385 435 487 538 589
L mm 46 283 305 457 521 559 635 762 838 914 991 1092 1143
H mm 165 193 231 329 393 401 441 481 598 643 708 798 863
W mm 230 400 460 1000 500 500 500 500 500 500 500 500 500
Weight(kg) 17 33 50 93 166 273 475 570 778 935 1190 1346 1579
Class300
Size in 2 3 4 6 8 10 12 14 16 18 20 22 24
D mm 49 74 100 150 201 252 303 334 385 435 487 538 589
L mm 216 283 305 457 521 559 635 762 838 914 991 1092 1143
H mm 165 193 231 329 393 401 441 481 598 643 708 798 863
W mm 230 400 460 1000 500 500 500 500 500 500 500 500 500
Weight(kg) 18 40 63 150 240 305 407 602 1000 1160 1320 1540 1874
