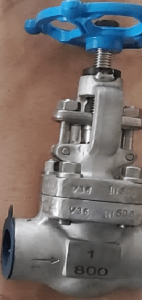

Forged Steel Globe Valve

Body: A105, F11, F304, F316

Seat: A105, F11, F304, F316

Disc: A105, F11, F304, F316

Stem: Stainless Steeel

Gasket: Stainless Steel+Graphite

Bonnet: A105, F11, F304, F316

Bolts: A193 B8M

Stem Packing: Graphite

Globe: Stainless Steel

Globe Flange: A105, F11, F304, F316

Bolts: A193 B8M

Nut: A194 8M

Stem Nut: A276 420

Handwheel: Carbon Steel, Ductile Iron

Nominal Diameter: DN8 to DN40

Nominal Pressure: Class800 to Class2500

End Connection: Buttweld, Threaded or Welded, Flanged

Dimension

Class800                                                   Unit: mm

DN L d
8 79 6
15 79 10
20 92 12
25 111 17
40 152 28
Body Material

ASTM A105N, ASTM A182 F304, ASTM A182 F316

Class

1500, 2500, 800

Size

1 1/2", 1", 1/2", 2", 3/4"

Forged Steel Globe Valve
