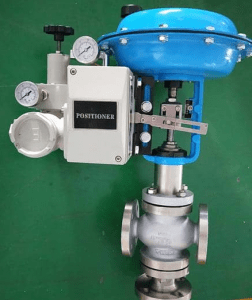

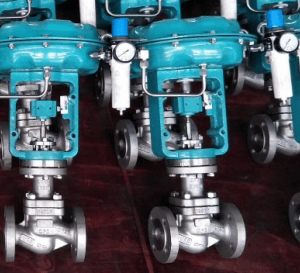

Pneumatic Single Seat Globe Control Valve
Body: SS304, SS316, CF8, CF8M, F304, F316, WCB
Bonnet: CS, SS304, SS316
Packing: Graphite, PTFE
Stem: Stainless Steel
Nominal Diameter: DN20 to DN200
Nominal Pressure: PN16 to PN64, Class150 to Class2500
End Connection: Buttweld, Socketweld, Flanged
Actuation Type: Double Acting, Spring Return
Dimension
PN16 Unit: mm
DN
A
H1
H2
H5
H4
20
282
126
271
43
298
25
282
126
271
48
298
32
308
134
297
57
298
40
308
157
297
66
298
50
308
167
297
80
360
65
395
199
375
92
360
80
395
214
375
100
360
100
395
229
375
120
440
125
498
263
455
134
510
150
498
293
455
156
510
200
498
358
455
199
640
