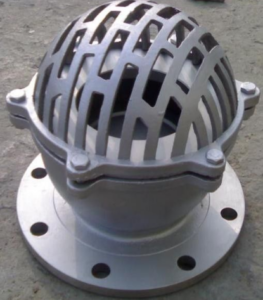

Foot Valve

Body: Cast Iron, Ductile Iron, SS304, SS316

Disc: Carbon Steel, Stainless Steel, SS304, SS316

Seat: F304, F316

Mesh: SS304

Nominal Size: DN50 to DN300

Nominal Pressure: PN16, Class150

Dimensions Unit: mm

DN	D	D1	D2	b-f	z-*d	hO	H
50	140	110	90	16-3	4-14	17	142
65	160	130	110	16-3	4-14	25	180
80	185	150	125	18-3	4-18	32	197
100	205	170	145	18-3	4-18	40	230
125	235	250	175	20-3	8-18	43	270
150	260	225	200	20-3	8-18	38	297
200	315	280	255	22-3	8-18	65	382
250	370	335	310	24-3	12-18	84	460
300	435	395	262	24-4	12-23	90	530

Body Material	Cast iron, Ductile Iron, SS304, SS316
Class	150/PN16
Size	10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
