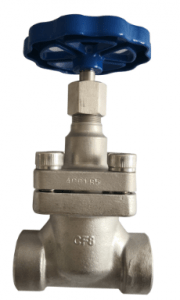

Cryogenic Short Stem Globe Valve Manufacturer in India

A cryogenic short stem globe valve is used for isolation and throttling of fluids at low temperatures where valve materials, sealing components and stem-area design must remain suitable during thermal cycling. Cryogenic globe valves are used in applications involving liquefied gases and other low-temperature process fluids. Speciality Valve manufactures cryogenic short stem globe valve configurations with the pressure-containing body, trim, seat, packing and bonnet arrangement selected according to the fluid, temperature, pressure class and applicable cryogenic valve requirements.

Cryogenic Globe Valve Operating Parameters:

Parameter	Technical Details
Valve Type	Cryogenic Globe Valve
Operation	Manual or actuated, configuration dependent
Closure Element	Tapered or conical disc
Body Material	Austenitic stainless steel or specified cryogenic alloy
Stem	One-piece construction where applicable
Bonnet	Extended bonnet/gland arrangement for cryogenic service
Seat	Metal or compatible soft-seat construction
Packing	Cryogenic-compatible packing selected for service
End Connections	Flanged, butt weld or other specified connection
Pressure Rating	Project-specific PN or ASME Class rating
Temperature Rating	Selected according to design temperature and materials

Cryogenic Valve Design Considerations:

Extended bonnet: Maintains the packing and stem-sealing region away from the coldest portion of the valve.
Stem arrangement: The stem and gland geometry are designed to limit heat transfer toward the packing area.
Conical disc: Cryogenic globe valves covered by BS 6364 use tapered or conical discs rather than flat-seated discs.
Thermal contraction: Body, stem, disc, seat and bolting materials must be considered for dimensional changes during cooldown.
Trapped-liquid pressure: The design must address pressure that can develop from thermal expansion or vaporisation in trapped cavities.
Stem integrity: Cryogenic valve standards require appropriate stem construction and retention arrangements.
Low-temperature sealing: Packing and seat materials must remain suitable throughout the specified operating temperature range.

Cryogenic Valve Material Options:

Material	Typical Consideration
Austenitic Stainless Steel	Common choice for low-temperature pressure-containing components
304 Stainless Steel	General cryogenic service where compatible with the process
316 Stainless Steel	Corrosive or chloride-containing environments
Low-Carbon Stainless Steel	Applications requiring reduced carbon content and suitable cryogenic properties
Duplex Stainless Steel	Selected services where strength and corrosion resistance are required
Nickel Alloys	Specialized corrosive or temperature-demanding applications

Cryogenic Valve Material Grades:

Grade	Material Classification
ASTM A182 F304	Austenitic stainless steel
ASTM A182 F304L	Low-carbon austenitic stainless steel
ASTM A182 F316	Molybdenum-bearing stainless steel
ASTM A182 F316L	Low-carbon molybdenum-bearing stainless steel
ASTM A351 CF8	Austenitic stainless steel casting
ASTM A351 CF3	Low-carbon stainless steel casting
ASTM A351 CF8M	Molybdenum-bearing stainless steel casting
ASTM A351 CF3M	Low-carbon molybdenum-bearing stainless steel casting

Cryogenic Service Applications:

LNG systems: Isolation and throttling in liquefied natural gas handling and transfer systems.
Air separation units: Service involving liquefied oxygen, nitrogen and argon where the selected materials and cleaning requirements are suitable.
Cryogenic storage: Valve service on low-temperature storage vessels and connected piping.
Industrial gas plants: Flow isolation and regulation for compatible liquefied industrial gases.
Cryogenic process piping: Controlled fluid movement in low-temperature process and transfer lines.

Pressure, Connections and Installation:

Requirement	Technical Consideration
Pressure Class	Selected according to design pressure and temperature
Flanged Ends	Dimensions according to applicable flange standard
Butt Weld Ends	Suitable for permanent cryogenic piping connections
Stem Position	Determined according to gas, liquid and installation requirements
Bonnet Extension	Sized to maintain suitable packing temperature
Flow Direction	Marked where the valve design is directional
Installation	Orientation selected according to cryogenic service and valve design

Cryogenic Valve Standards and Testing:

BS 6364: Requirements for the design, manufacture and testing of valves for cryogenic service.
ASME B16.34: Applicable valve pressure-temperature and construction requirements.
ASME B16.25: Butt-weld end dimensions where applicable.
ASME B16.5: Flange dimensions for applicable ASME-rated valves.
ISO 5208: Pressure and leakage testing where specified.
API 598: Applicable inspection and pressure testing requirements where specified.
Cryogenic testing: Low-temperature functional and leakage testing should be performed where required by the project specification.

For a cryogenic application, provide the fluid, minimum design temperature, operating pressure, line size, pressure class and end connection to Speciality Valve to discuss the appropriate valve construction, materials and configuration and obtain a quotation.
