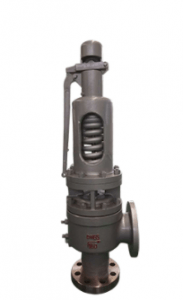

Bellow Safety Valve Manufacturer in India

Bellow safety valves incorporate a metallic bellow to isolate the spring chamber from the process medium and, in balanced designs, reduce the influence of back pressure on the valve's opening characteristics. They are particularly useful where corrosive or hazardous media could affect the spring mechanism or where discharge back pressure needs to be considered as part of the valve design. Speciality Valve manufactures bellow safety valve configurations for industrial pressure-relief applications, with the valve arrangement selected according to the process medium, pressure, temperature and back-pressure conditions.

Bellow Construction and Pressure Effects:

• Process isolation: The bellow separates the spring and bonnet region from the process fluid in applicable designs.

• Back-pressure compensation: A balanced bellow can reduce the effect of outlet pressure acting on the valve's opening characteristics.

• Corrosion protection: Keeping corrosive process fluid away from the spring area can improve component durability.

• Emission control: The arrangement can help limit process-fluid escape through the bonnet area where the design provides this function.

• Bellow integrity: The bellow itself becomes a critical pressure-retaining or pressure-balancing component and must be selected for the intended service.

• Thermal effects: Bellow and trim materials must remain suitable for the operating and relieving temperature.

• Fatigue resistance: Repeated pressure cycles and lifting events should be considered when assessing bellow service requirements.

Bellow Safety Valve Specifications:

Materials and Grades:

Bellow and trim materials may differ from the body material and should be specified according to process chemistry and temperature. The bellow material is particularly important where corrosion, temperature cycling or repeated pressure movement could affect service life.

Service Conditions That Favour Bellow Design:

• Corrosive process vapours: Helps isolate the spring chamber from aggressive media.

• Toxic or hazardous fluids: Useful where bonnet-side process leakage needs to be controlled.

• Variable outlet pressure: Balanced arrangements can be considered where back pressure could influence conventional spring loading.

• Fouling or contaminated media: Bellow isolation can protect internal spring-area components from process deposits.

• High-temperature process service: Material selection must account for both the process temperature and bellow operating limits.

• Emission-sensitive duties: Suitable configurations can help reduce process-fluid migration into the bonnet area.

Applications by Relief Duty:

• Petrochemical vessels: Protection of process vessels containing hydrocarbons or corrosive components.

• Chemical reactors: Pressure relief where the process medium requires isolation from the spring chamber.

• Gas processing equipment: Suitable for selected gas and vapour services with controlled back pressure.

• Refinery process systems: Applied to pressure-containing equipment where corrosion and emissions are considerations.

• Hazardous-fluid systems: Used where the valve construction is compatible with the process and discharge arrangement.

Inspection and Applicable Standards:

• ASME BPVC Section XIII: Applicable requirements for overpressure protection devices.

• API 520: Sizing and selection of applicable pressure-relieving devices.

• API 521: Relief-system and discharge-system considerations.

• API 526: Applicable to flanged steel pressure-relief valve designs within its scope.

• API 527: Seat-tightness testing for applicable conventional, bellows and pilot-operated designs.

• Bellows inspection: The bellows should be evaluated according to the applicable manufacturer's inspection and test procedure.

• Pressure testing: Shell and seat testing should follow the applicable product specification and project requirements.

Provide the process medium, set pressure, operating temperature, back pressure and required relieving capacity to Speciality Valve to discuss a suitable bellow safety valve configuration and obtain a quotation.
