How does a strainer protect equipment in a piping system?

A strainer removes dirt, rust, scale and solid particles from the fluid, helping protect pumps, valve, meters and other downstream equipment from clogging and damage.

What factors should be considered when selecting a strainer?

Consider the flow rate, pipe size, pressure, temperature, particle size, filtration requirement and allowable pressure drop. The strainer should provide adequate protection without unnecessarily restricting flow.

Strainer vs suction diffuser: what is the difference?

A strainer primarily removes solid particles from the fluid, while a suction diffuser is designed for pump suction applications and can combine filtration with improved flow conditions entering the pump.

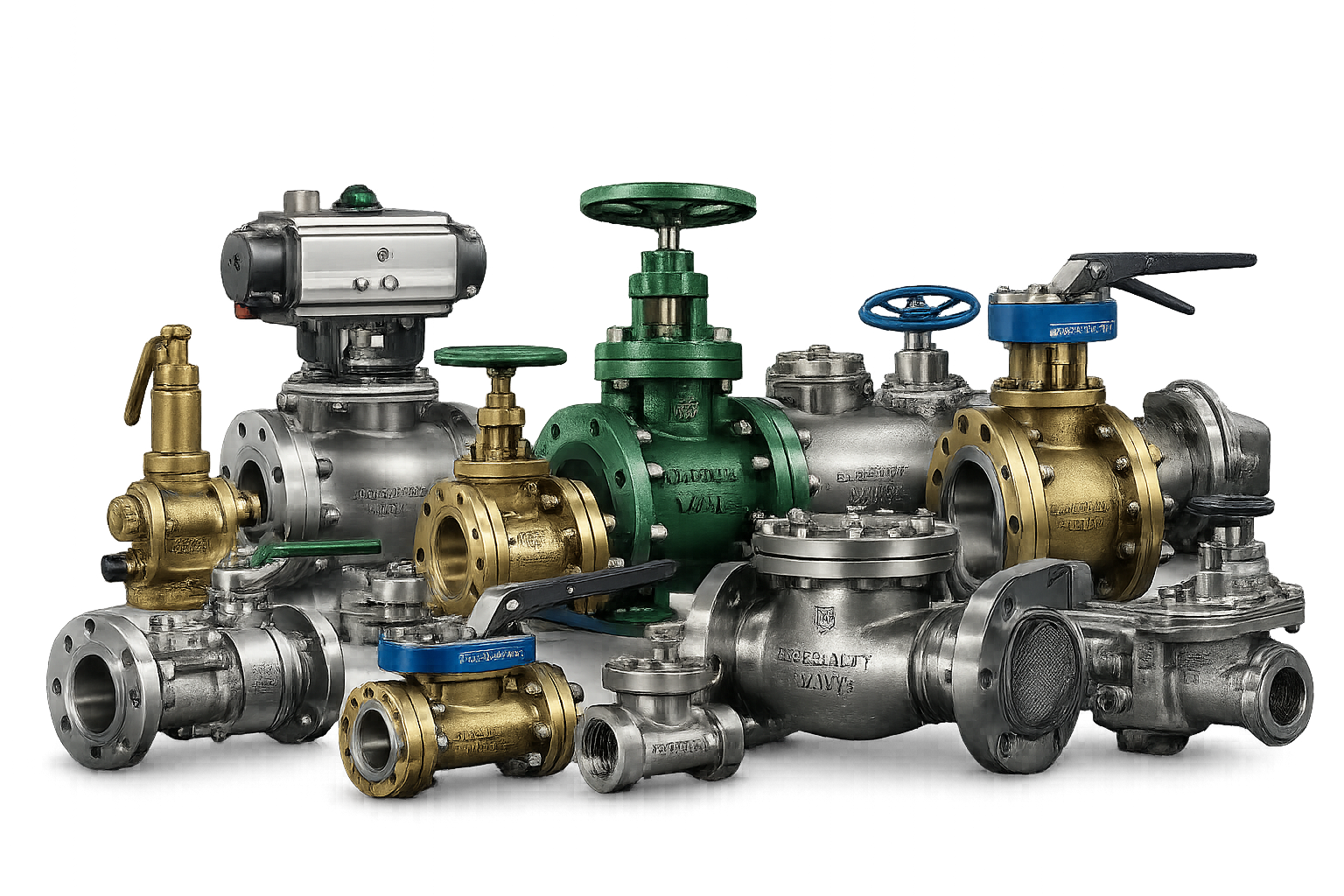

Strainer Manufacturer in India

Pipeline debris can interfere with pumps, control valves, meters and heat exchangers long before it becomes a system problem. Speciality Valve manufactures Y strainers, simplex basket strainers and duplex basket strainers for different filtration and maintenance requirements. The appropriate configuration is selected according to particle size, debris load, flow conditions, fluid properties, allowable pressure drop and whether the line can be shut down for cleaning.

Y Strainer, Simplex or Duplex – Which Fits the Line?

The three designs mainly differ in dirt-holding capacity, installation space and the way they are cleaned.

Requirement	Y Strainer	Simplex Basket Strainer	Duplex Basket Strainer
Installation space	Compact	Moderate	Larger
Debris load	Low to moderate	Moderate to high	Moderate to high
Cleaning	Screen removal or blowdown	Line normally isolated	Changeover allows one basket to be cleaned
Process interruption	Normally required for screen removal	Normally required	Can be avoided during routine cleaning
Best suited for	Equipment protection lines	Higher dirt-loading service	Processes that should remain online

Y Strainer: Useful where space is limited and debris loading is relatively light.
Simplex Basket Strainer: Provides greater basket area where more solids are expected and temporary shutdown is acceptable.
Duplex Basket Strainer: Selected where filtration needs to continue while one basket is isolated for cleaning.

Choosing the Screen Opening:

The screen should stop particles large enough to damage downstream equipment without creating unnecessary restriction.

A finer opening can capture smaller debris, but it may also:

Increase pressure drop
Block more quickly
Require more frequent cleaning
Increase loading on the screen

An opening that is too coarse may allow damaging particles to pass.

The choice therefore depends on the particle size, solids concentration, fluid viscosity and equipment being protected.

For clearer project specifications, the required perforation or opening size is generally more useful than giving only a mesh number.

Filtration Area and Pressure Drop:

Pressure drop across a strainer increases as debris accumulates on the screen or basket.

As the available open area decreases:

Debris build-up → Higher differential pressure → Reduced flow → Cleaning required

This is why the filtration area matters. A larger effective screen or basket area can provide more dirt-holding capacity and may extend the operating period between cleaning cycles.

For important services, monitoring differential pressure across the strainer can provide a practical indication of screen or basket condition.

When Should the Screen or Basket Be Cleaned?

There is no single cleaning interval that suits every pipeline.

Cleaning frequency changes with:

Debris concentration
Screen opening
Flow rate
Operating hours
Filtration area
Maximum allowable differential pressure

Increasing differential pressure, reduced flow or a change in downstream-equipment performance can indicate that inspection or cleaning is required.

Y and simplex strainers normally require the relevant line section to be isolated and depressurised before the element is removed. A duplex strainer is designed to allow flow to be transferred to the alternate chamber so the isolated basket can be serviced according to the operating procedure.

During cleaning, inspect the screen or basket, gasket, sealing surfaces and drain arrangement before returning the unit to operation.

Strainer Construction and Connection Options:

Parameter	Available Configuration
Types	Y Strainer, Simplex Basket Strainer, Duplex Basket Strainer
Size	Varies by strainer type and configuration
Pressure Rating	Depends on body design and selected configuration
Body Materials	Cast iron, ductile iron, carbon steel, stainless steel, duplex stainless steel and specified materials where applicable
Element Material	Stainless steel or specified material
Element Construction	Perforated screen, wire mesh or basket depending on design
End Connections	Flanged, threaded, socket weld or butt weld, where applicable
Drain / Blow-Off	Drain or blow-off connection where provided by the selected design

Strainer Applications and Installation Locations:

Before Pumps: Removes rust, scale and other debris before it reaches impellers, seals and internal pump components.
Upstream of Control Valves: Helps stop foreign particles from reaching trim and seating surfaces.
Steam and Condensate Lines: Y strainers can protect steam traps and other steam-system components from pipeline debris.
Before Heat Exchangers: Captures pipeline debris and larger solids that could contribute to blockage or fouling of heat-exchanger passages.
Process Transfer Lines: Basket strainers provide greater dirt-holding capacity ahead of meters, valves and other sensitive equipment.

Share the process medium, flow rate, required filtration opening, allowable pressure drop and cleaning requirements with Speciality Valve for strainer selection and quotation.
