Modern city infrastructure depends mostly on effective water delivery and supply systems. Valve control, regulation, and isolation of water flow are vital aspects of these systems in which they are central. Good valves are essential for engineers and city planners to guarantee continuous service, lower leakage, and preserve safety. Working with a trustworthy Valve Manufacturer in India guarantees that systems are created to satisfy particular environmental and functional needs. Constant performance depends on these valves' ability to resist pressure changes, temperature variations, and possible contamination. Right valve selection and maintenance not only prolong the lifetime of pipes but also maximize the general efficiency of the network for water distribution.
The kinds of valves employed in water supply networks, their functioning principles, technical characteristics, and uses in several phases of water distribution will all be discussed in this article.
Working Principles of Water Supply Valves
Valves are a must for water distribution systems since they guarantee safe, efficient, and regulated flow of water. Precise mechanical devices control, isolate, and safeguard the water network upon which their action depends. Generally speaking, valves do three main things::
- Flow Regulation: Controls pipeline water pressure and flow rate.
- Isolation: Stops flow in sections for maintenance or emergencies.
- Backflow Prevention: Keeps water from going backwards to preserve drinking supplies.
Various valve types use discs, plugs, gates, or diaphragms to accomplish these objectives, and they can be manually or electrically, pneumatically, or hydraulically operated to guarantee dependable and safe system functioning.
Common Types of Valves in Water Supply Systems
The intended application, flow needs, pressure conditions, and maintenance factors help to determine the kind of valve picked. Common valve kinds seen in water supply and distribution are listed below:
| Type | Function / Description | Applications | Pressure | Size | Key Feature |
| Gate Valve | Fully open/close flow | Water mains, pipelines | 10–25 bar | 50–1200 mm | Low pressure drop |
| Globe Valve | Precise flow control | Pump lines, treatment | 10–20 bar | 25–500 mm | Accurate throttling |

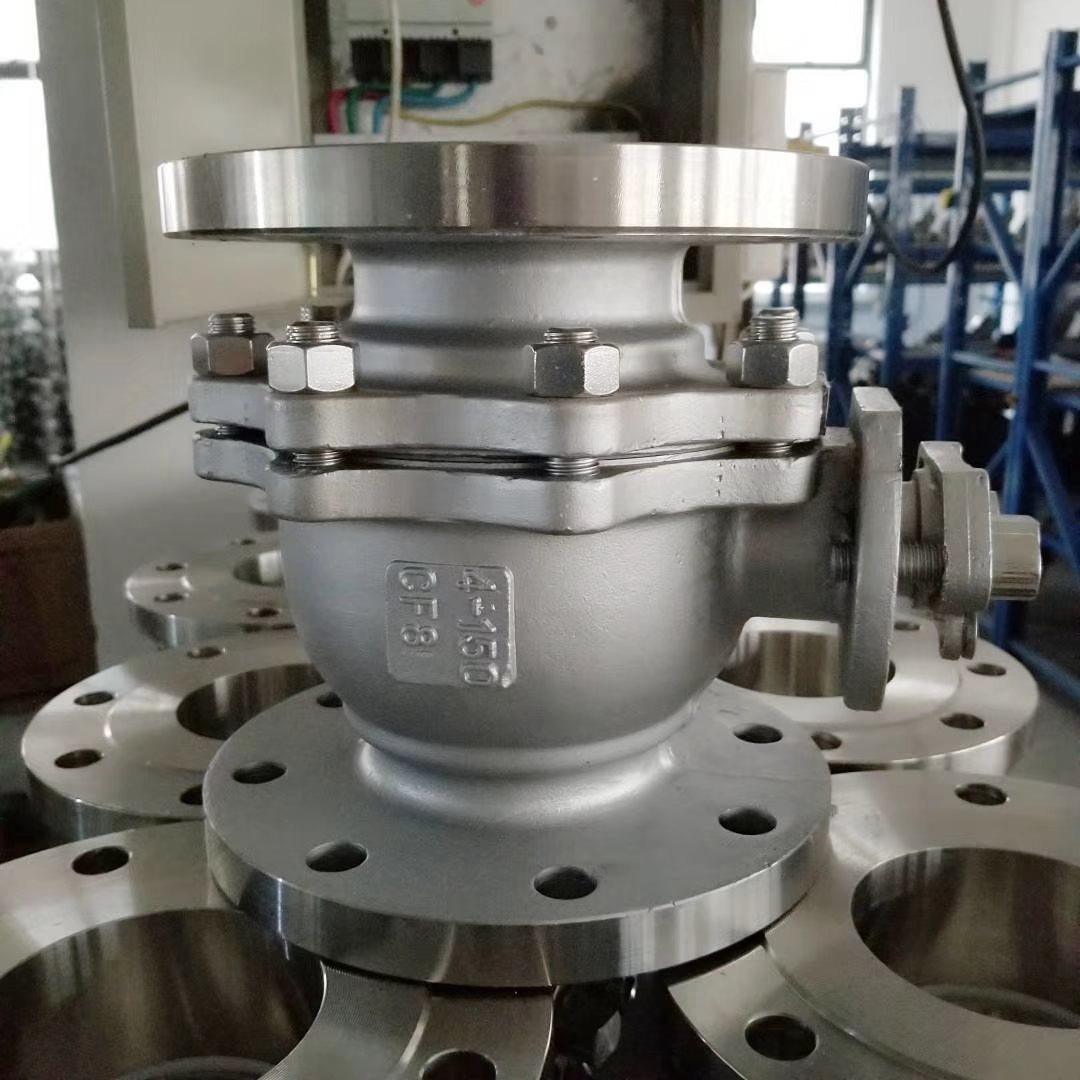

| Ball Valve | Quick quarter-turn shut-off | Distribution, homes | 16–25 bar | 15–600 mm | Tight sealing |
| Butterfly Valve | Rotating disc, lightweight | Large pipelines | 10–16 bar | 150–2000 mm | Compact, easy automation |
| Check Valve | Prevents backflow | Pumps, tanks | 10–25 bar | 25–1200 mm | Protects system |
| Air Release Valve | Releases trapped air | Long pipelines, tanks | 10–16 bar | 50–300 mm | Reduces hammer & air |
| Pressure Reducing Valve | Maintains downstream pressure | Residential/industrial | 16–25 bar | 50–500 mm | Protects pipelines |
Technical Specifications to Consider
Valves need to satisfy very high operational criteria when creating or maintaining water supply systems. Important technical aspects follow here:
- Material: Based on water quality and corrosion resistance, choose cast iron, ductile iron, stainless steel, brass, or bronze.
- Pressure Rating: For municipal water pipelines, it usually spans 10 to 25 bar.
- Temperature Range: Most valves manage water temperatures between 0°C and 70°C; particular valves can reach 100°C..
- End Connections: Depending on the kind of pipeline, flanged, threaded, grooved, or welded.
- Flow Coefficient (Cv): Helps to ascertain flow capacity and pressure drop.
- Compliance Standards:India mostly follows AWWA standards, 14846, and IS 1363.
Role of Valves in Different Stages of Water Distribution
Valve usage is not consistent; rather, at several points of water distribution they are tailored to particular tasks:
- Source and Pumping Stations: Gate valves and check valves control flow and stop pumps from reversing direction.
- Transmission Pipelines: Large-diameter water movement is effectively controlled by gate and butterfly valves.
- Storage and Reservoirs: Air release and check valves maintain pressure balance and prevent damage.
- Distribution Network: Residential and commercial branches may be accurately controlled using ball and globe valves.
- Treatment Facilities: Globe and pressure-reducing valves control chemical dosing and flow across treatment units.
Maintenance and Durability Considerations
Valves in water supply systems are designed for long-term reliability but require periodic inspection:
- Visual Inspection: Check for leaks, corrosion, and proper operation.
- Operational Testing: Open/close valves periodically to avoid seizing.
- Seal and Gasket Replacement: Prevents leakage and ensures system efficiency.
- Automation Calibration: For motorized or actuated valves, ensure controllers are functioning accurately.
High-quality valves from trusted sources such as Speciality Valve can significantly reduce maintenance costs and downtime.
Industry Standards and Compliance
Municipal water systems must adhere to strict standards to ensure safety and longevity:
| Standard | Purpose |
| IS 14846 | Ductile iron gate, globe, and check valves |
| IS 1363 | Bolts, nuts, and flanges for valves |
| AWWA C515 | Rubber-seated butterfly valves |
| ISO 9001 / ISO 14001 | Quality management and environmental compliance |
| WRAS / BIS Drinking Water Standards | Ensures valves are safe for potable water |
Selecting the Right Valve Manufacturer
To guarantee long-term dependability and system performance, several aspects must be considered when selecting a Valve Manufacturer in India:
- Proven track record: Reliability and quality are shown by experience providing valves for industrial and municipal water systems.
- Standards compliance: Being able to supply valves conforming to IS, AWWA, and other pertinent criteria guarantees performance and safety.
- Technical support: Expert advice on valve selection, installation, maintenance, and sizing helps lower operating problems by means of access.
- Product range: Having many different kinds of valves, materials, and sizes lets the maker serve several phases of water delivery.
- Customization and service: Manufacturers providing personalized solutions, fast delivery, and post-sales assistance can assist satisfy particular project needs.
Speciality Valve provides a whole spectrum of valves fit for every level of water distribution. Adhering to worldwide criteria and having committed technical assistance enables planners and engineers to design effective, safe, and long-lasting water systems.
Conclusion
Water supply and distribution systems' understated stars are valves. Their correct choice and upkeep are essential for system dependability and efficiency, from keeping constant pressure to avoiding contamination. Working with a reliable manufacturer helps water companies and engineers to guarantee long-lasting performance, safety, and adherence to changing regulations.
Whether creating new pipelines or improving current networks, thinking on operational needs, pressure ratings, and material specifications will help to maximize performance. Researching choices offered via Specialty Valve will help to make wise decisions regarding premium valves appropriate for municipal and industrial water systems by providing more insights into them.
