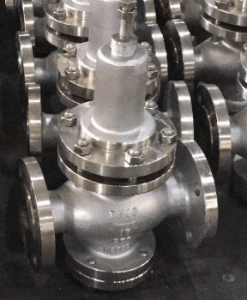

Steam Pressure Reducing Valve
Payment. Payment upon receipt of goods, Payment by card in the department, Google Pay, Online card, -5% discount in case of payment
Warranty. The Consumer Protection Act does not provide for the return of this product of proper quality.
Description
Steam Pressure Reducing Valve
Nut: Stainless Steel
Bolt: Stainless Steel
Body: Carbon Steel, Ductile Iron, Stainless Steel
Back Cover: Stainless Steel
Disc: Stainless Steel
Seal Ring: PTFE
Cylinder Liner: Stainless Steel
Piston: Stainless Steel
O-Ring: NBR
Cap: Stainless Steel
Adjust Spring: Steel
Cover: PVC
Adjust Screw: Stainless Steel
Nominal Diameter: DN15 to DN50
Nominal Pressure: PN16 to PN64
End Connection: Flanged
Dimension
PN16 Unit: mm
| DN | L | H | H1 |
| 15 | 160 | 265 | 100 |
| 20 | 160 | 265 | 100 |
| 25 | 180 | 285 | 110 |
| 32 | 200 | 285 | 110 |
| 40 | 220 | 320 | 120 |
| 50 | 250 | 320 | 120 |
Additional information
| Body Material | Ductile Iron |
|---|---|
| Class | PN25, PN40 |
| Connection Type | Flanged, Screwed |
| Size | 1 1/2", 1 1/4", 1", 1/2", 2", 3", 3/4" |
