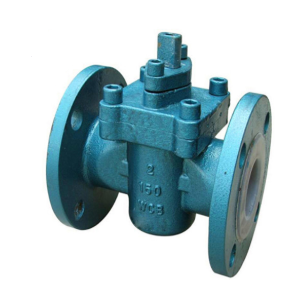

Non Lubricated Plug Valve
Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
Plug: A105+ENP, SS304, SS304L, SS316, SS316L
Seat: PTFE, PPL
Seat Ring: PTFE, PPL
Packing: Graphite, PTFE, PPL
Gasket: SS304+Graphite
Nominal Size: DN15 to DN350
Nominal Pressure: Class150 to Class900, PN16 to PN63
Flanged Ends to ASME B16.5
Socket Weld Ends to ASME B16.11
Butt Weld Ends to ASME B16.25
Screwed Ends to ANSI, ASME B1.20.1
Inspection and Test: API 598, API 6D
Dimensions
Pressure
150 Lbs
Size
mm
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
in
1/2″
3/4″
1″
11/4″
11/2″
2″
21/2″
3″
4″
5″
6″
8″
10″
12″
14″
L-RF
108
117
127
140
165
178
190
203
229
245
267
292
330
356
381
L-BW
152
178
203
216
229
267
305
330
356
381
394
457
533
610
686
H
110
115
115
135
140
150
165
180
380
460
520
580
260
680
760
W
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight(Kg)
8.5
9.5
10.0
12
14
22
22
26
40
60
70
130
219
381
570
Pressure
300 Lbs
Size
mm
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
in
1/2″
3/4″
1″
11/4″
11/2″
2″
21/2″
3″
4″
5″
6″
8″
10″
12″
14″
L-RF
108
117
127
140
165
178
190
203
229
245
267
292
330
356
381
L-BW
152
178
203
216
229
267
305
330
356
381
394
457
533
610
686
H
110
115
115
135
140
150
165
180
380
460
520
580
260
680
760
W
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight(Kg)
8.5
9.5
10.0
12
14
22
22
26
40
60
70
130
219
381
570
Pressure
600 Lbs
Size
mm
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
in
1/2″
3/4″
1″
11/4″
11/2″
2″
21/2″
3″
4″
5″
6″
8″
10″
12″
14″
L-RF, BW
165
190
216
229
214
292
330
356
432
508
559
660
787
838
889
H
110
115
115
135
140
150
165
180
380
460
520
580
260
680
760
W
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight(Kg)
11
13
17
20
23
27
31
36
72
98
141
245
330
515
710
Pressure
900 Lbs
Size
mm
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
in
1/2″
3/4″
1″
11/4″
11/2″
2″
21/2″
3″
4″
5″
6″
8″
10″
12″
14″
L-RF, BW
229
229
254
279
305
368
419
381
457
559
610
737
838
965
1029
H
110
115
115
135
140
150
165
180
380
460
520
580
260
680
760
W
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight(Kg)
13
16
21
24
28
32
40
47
91
117
165
285
420
610
860
