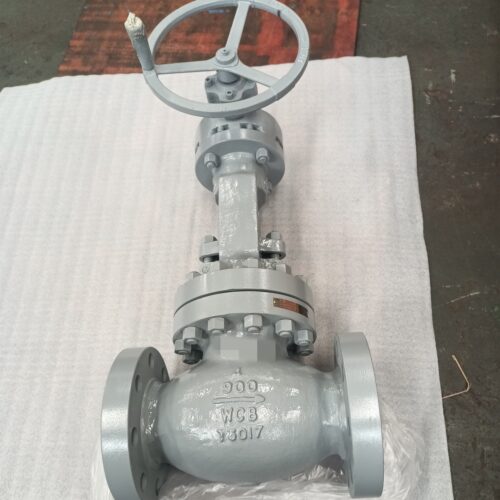

Carbon Steel Bellow Seal Globe Valve

Body:  Carbon Steel

Seat: Stainless Steel

Disc: Carbon Steel

Pin: Stainless Steel

Stem: 13Cr

Bellows: Stainless Steel

Sealing Member: Carbon Steel

Gasket: Graphite+Stainless Steel

Bonnet: Carbon Steel

Bolt: A193 B7

Nut: A194 2H

Packing: Graphite

Flange Gland: Carbon Steel

Pin: Steel

Locator: Carbon Steel

Stem Nut: Copper Ally, Ductile Iron

Oil Cup: Copper

Handwheel: Steel

Cap: Carbon Steel

Eyebolt: Stainless Steel

Nut: A194 2H

Pin: Stainless Steel

Weld Piece: Stainless Steel

Nominal Diameter: DN15 to DN300

Nominal Pressure: Class150 to Class1500, PN10 to PN64

End Connection: Flanged

Dimension

Class150                                                         Unit: mm

DN L D D1 D2 b n-фd
15 130 95 65 45 16 4-ф14
20 150 105 75 58 18 4-ф14
25 160 115 85 68 18 4-ф14
32 180 140 100 78 18 4-ф18
40 200 150 110 88 18 4-ф18
50 230 165 125 102 20 4-ф18
65 290 185 145 122 20 4-ф18
80 310 200 160 138 20 8-ф18
100 350 220 180 158 20 8-ф18
125 400 250 210 188 22 8-ф18
150 480 285 240 212 24 8-ф22
200 600 340 295 268 24 12-ф22
250 730 405 355 320 26 12-ф26
300 850 460 410 378 28 16-ф22
