BRONZE FLOATING BALL VALVE

Description

Bronze Floating Ball Valve

1. Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)

2. Bonnet: Bronze, Aluminium Bronze(C95800, C95500, C95200)

3. Ball: Bronze, Aluminium Bronze(C95800, C95500, C95200)

4. Stem: Bronze, Aluminium Bronze(C95800, C95500, C95200)

5. Seal ring: PTFE

6. Bonnet: SS316+Graphite

7. Bonnet Stud: A193-B8M

8. Bonnet Stud Nut: A194-8M

9. Packing: PTFE

10. Gland Flange: Bronze, Aluminium Bronze(C95800, C95500, C95200)

11. Gland Bolt: Bronze, Aluminium Bronze(C95800, C95500, C95200)

12. Stop Plate: Carbon Steel+Zn

13. Handle: Carbon Steel

Nominal Size: DN15 to DN300

Nominal Pressure: Class150 to Class600

Design and Manufacture Standard: API 6D, API 608, BS5351

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Connection: ANSI B16.5

Buttweld End: ANSI B16.25

Inspection and Test: API 598, API 6D

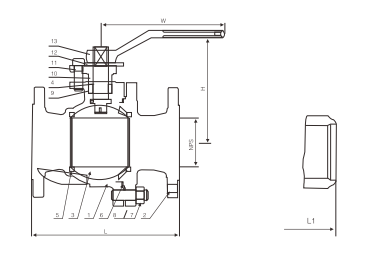

Dimensions                                                      Unit: mm

Class150

DN	L	L1	H	W
15	108	140	55	130
20	117	152	55	130
25	127	165	70	160
40	165	190	90	200
50	178	216	105	350
65	190	241	155	400
80	203	283	185	500
100	229	305	205	500
150	394	457	255	600
200	457	521	280	800
250	533	559	345	800
300	610	635	420	800
