Industrial plants rely largely on accurate flow control components, hence choosing the right seating technology between metal seated and soft seated valves is among the most critical choices engineers must make. Under variations in fluid quality, cycle frequency, sealing expectations and temperature changes, these two setups act quite differently. Industries like refineries, petrochemicals, thermal power, gas processing, mining and water transmission commonly consider both possibilities before determining their process architecture. Although companies like Speciality Valve supply designed valves for these industries, the final choice relies on knowledge of seat performance, material properties, flow behaviour and international testing standards.

Engineers and consultants can choose the best valve seat for their needs with the aid of this thorough guide, which also offers a systematic comparison.

Overview: How Metal Seated and Soft Seated Valves Differ

The seat closure interface defines how a valve isolates flow, reacts to temperature shifts, and manages wear. The core distinction between metal vs soft seated valves lies in their sealing material and the way each type maintains contact during operation.

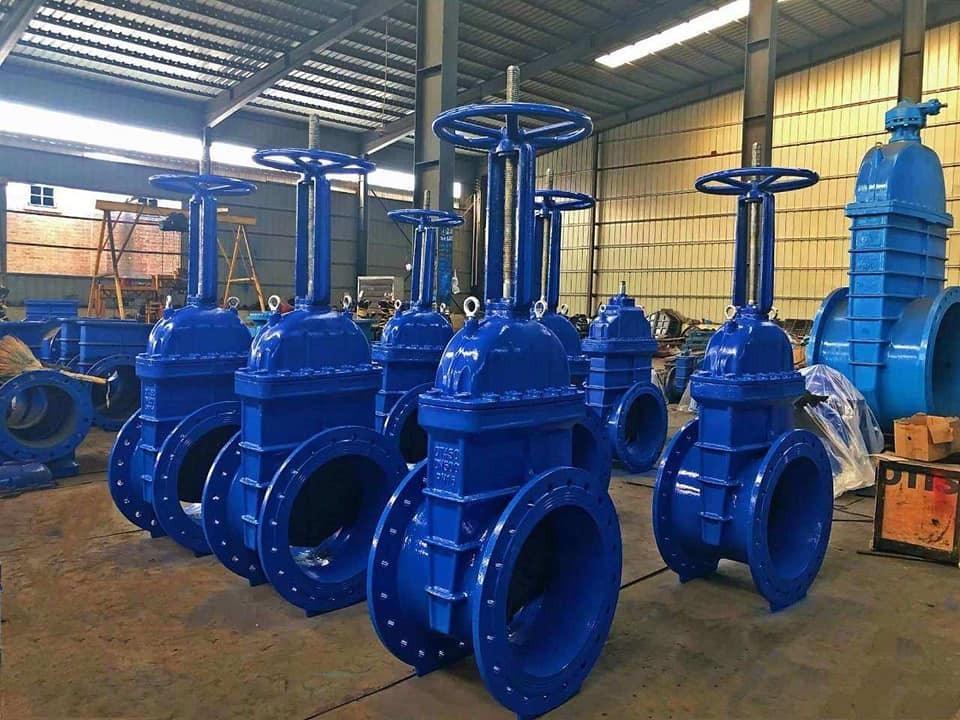

Metal Seated Valves

Metal-to-metal contact
Engineered for demanding service
Suitable for high-temperature and erosive conditions

Soft Seated Valves

Non-metallic seat inserts (PTFE, EPDM, FKM, RTFE, etc.)
Achieve bubble-tight sealing
Optimised for clean service and moderate pressure

These design pathways form the basis of their performance, leakage class, and long-term behaviour.

Material Composition and Engineering Design Differences

Seat material determines temperature capability, chemical resistance, seal tightness, and deformation control.

Metal Seated Valve Materials

Stellite 6 / Stellite 21
Tungsten carbide
Chromium carbide
Hard-faced stainless steel
Inconel or Hastelloy trims

Engineering attributes:

Precision lapping of seat–plug surfaces
Hard-facing to resist erosion
High stem thrust capacity
Highly stable geometry even during thermal cycling

Soft Seated Valve Materials

PTFE / Reinforced PTFE
EPDM / NBR
UHMWPE
FKM (Viton)
PEEK (in advanced polymer seats)

Engineering attributes:

Flexible contact area for tighter sealing
Lower actuation torque
Controlled compression for bubble-tight performance

What Is the Difference Between Metal Seated and Soft Seated Valves?

Feature	Metal Seated Valves	Soft Seated Valves
Temperature Range	Very high (up to 800°C depending on alloy)	Low to moderate (−30°C to 250°C)
Leakage Class	API 598 Class IV–V	API 598 Class VI (bubble-tight)
Wear Resistance	Excellent in slurry, high velocity, and solids	Limited; can deform with debris
Chemical Compatibility	High with correct alloy selection	Depends on elastomer/polymer
Torque Requirement	Higher due to rigid sealing	Lower due to flexible sealing
Service Nature	Severe service, steam, abrasive fluids	Clean liquids, gases, moderate duty

This comparison shows why each seat technology supports a very different process requirement.

How Standards Evaluate Valve Seat Performance (API 598, ASME, ISO)

Global standards ensure that both metal and soft seats meet uniform requirements.

API 598 – Inspection & Testing of Valves

Hydrostatic seat test
Air seat test
Defines allowable leakage for Class IV, V, VI

ASME B16.34 – Pressure–Temperature Ratings

Body material rules
Pressure class limits
Validation for elevated temperatures

ISO 5208 – Pressure Testing of Valves

A–H leakage classes
Seat closure verification

API 607 / ISO 10497 – Fire-Safe Test

Critical for valves with polymeric seats

ISO 15848 – Fugitive Emissions Testing

Packing and sealing behaviour under mechanical load

These certifications validate structural integrity, seat stability, and sealing consistency.

Flow Characteristics and Valve Seat Mechanism

Valve seating influences fluid movement, turbulence patterns, and pressure loss.

Metal Seated Valves	Soft Seated Valves
Suitable for turbulent, high-velocity flow	Smooth flow in clean liquids and gases
Handle erosive or particulate-laden media	Very low leakage under light-to-medium pressure
Maintain geometry under high thermal load	Minimal torque and stable control
Good for throttling in severe conditions	Not suitable for slurry, solids, or high-velocity erosion

Operating Behaviour of Each Seat Type

Metal Seated Behaviours

Tolerate temperature spikes
Resist abrasive wear
Low deformation under stem thrust
Effective in cracking furnaces, steam lines, FCCU units

Soft Seated Behaviours

Quiet sealing operation
Highly effective for low-pressure gas isolation
Sensitive to over-temperature conditions
Best for instrument air, cooling water, or utility lines

Typical Applications for Both Seat Types

Metal Seated Valves	Soft Seated Valves
High-temperature steam	Clean water networks
Refinery cracking operations	Compressed air
Mining slurry pipelines	HVAC flow isolation
High-pressure gas	Chemical dosing
Power turbine lines	Natural gas pipelines (Class VI shutoff)

When Should You Select a Metal Seated Valve?

Choose metal seats when:

Temperatures exceed 250°C
Process fluid contains solids or abrasive particles
Pressure drop is high
System cycles rapidly
Throttling in severe service is expected
Fire-safe certification is required

When Should You Choose a Soft Seated Valve?

Select soft seats when you need:

Class VI bubble-tight isolation
Clean flow medium
Lower operating torque
Cost-effective sealing at moderate temperature
Quiet operation in HVAC or utility services

Technical Specifications: Materials, Pressure Classes & Testing

Specification	Metal Seated	Soft Seated
Body Materials	Carbon steel, stainless steel, duplex, Inconel	Stainless steel, carbon steel, brass, PVC
Seat Materials	Stellite, tungsten carbide, chrome carbide	PTFE, RTFE, EPDM, UHMWPE, FKM
Pressure Class	ASME 150–2500	ASME 150–600
Temperature	Up to 800°C	−30°C to 250°C
Leakage Class	API IV–V	API VI
Testing Standards	API 598, API 607, ISO 5208	API 598, ISO 5208, ISO 15848

Performance Under Extreme Temperature and Pressure

Metal Seated Valves	Soft Seated Valves
Maintain sealing integrity at temperatures up to 800°C	Provide bubble-tight shutoff (API Class VI) at low-to-moderate temperatures
Handle high-pressure applications such as steam lines and gas transmission.	Performance may reduce if exposed to high heat or rapid pressure changes.
Resist deformation under thermal cycling or rapid pressure fluctuations.	Seat compression or slight deformation can occur under extreme conditions.
Keep the performance of leakage class (API Class IV–V) in hostile environments like erosive or abrasive media.	Ideal for gases, clean fluids and low-pressure uses

Factors That Determine the Right Seat Type

Key decision parameters include:

Maximum & minimum temperature
Pressure rating and cycling frequency
Presence of abrasives or solids
Required leakage class
Media chemical compatibility
Actuation torque requirements
Expected maintenance intervals
Seat deformation limits
Fire-safety or emissions testing needs

This framework guides engineers toward a seat that matches the system’s operational profile.

Metal seated and soft seated valves offer really distinct functional goals. Soft seats offer great sealing and smoother operation for clean fluids under modest pressure, metal seats do best in high temperature, abrasive and heavy service settings. Designers of the system have to check leakage class standards, media characteristics, temperature exposure and actuation demands before setting on a last choice. Certification standards like API 598, ASME B16.34, ISO 5208, ISO 15848, and API 607 verify performance and ensure compliance in all kinds of industrial uses. A focused engineering examination guarantees the chosen seating technology ensures consistent system performance and process continuity as well as dependability.
