Refineries, power plants, thermal oil circuits, chemical reactors and steam networks all include valves that have to function well in high temperature settings. Metals expand at increased temperature, sealing surfaces act differently, and torque needs vary, therefore valve selection is more of a technical process than just a simple product choice.Speciality Valve provide engineering solution for these demanding sectors, but selecting the right valve depends on understanding temperature response , pressure behaviour and international testing standards.
Engineers and procurement team can use this guide for practical reference, offering a structured framework to choose valves for use at high temperature applications
Key Considerations for High-Temperature Valve Selection
- Metal expansion: Increases stem friction and torque requirements.
- Seat deformation: Soft seats may lose form or compress under heat.
- Pressure derating: Material strength decreases at elevated temperatures.
- Seal performance: Metal-to-metal or graphite are frequently needed.
- Thermal cycling: Repeated cooling and heating might modify forms and the effectiveness of sealing.
Understanding System Conditions
Before choosing a valve, evaluate:
- Process temperatures: Maximum and minimum operating temperatures.
- Exposure type: Constant state against periodic heating or thermal cycling.
- Media type: Steam, thermal oil, gas or hydrocarbon vapors.
- Pressure conditions: Pressure class, potential derating, and peak load.
- Flow requirements: CV values and turbulence considerations.
- Contaminants: Abrasive or corrosive particles in the medium.
- Sealing needs: Leakage class (such as ANSI/FCI 70-2)
- Automation: Torque requirements for actuated valves.
- Installation constraints: Accessibility and insulation effects.
How High Temperature Affects Valve Torque and Forces
Heat impacts both moving parts and actuation:
- Torque can rise 20–60% depending on packing and stem friction.
- Graphite packing increases stem drag relative to PTFE.
- Seat expansion under heat increases actuation resistance.
- Engineers should consider oversized actuators and high-temperature lubrication.
- Live-loading can maintain sealing force during thermal cycling.
Preparing for these circumstances helps to prevent under actuation, seat damage and operating efficiency.
Pressure Ratings and Material Behavior at Elevated Temperatures
All materials lose strength as temperature increases.
- Carbon steel (A216 WCB): Full rating up to ~425°C, declines above.
- Chrome-moly steels (A217 WC6 / WC9): Maintain strength up to 550–600°C.
- Stainless steels (CF8M, CF3M): Suitable up to 540–565°C.
Material selection should always consider derated values rather than ambient ratings.
Material Selection for High-Temperature Valves
| Component | Materials | Temperature/Application Range |
| Body Materials | Carbon steel (A216 WCB) | Up to ~425°C |
| Chrome-moly steels (A217 WC6/WC9, C12A) | Up to 550–600°C | |
| Stainless steel (304, 316) | Up to 540°C | |
| Nickel alloys (Inconel, Hastelloy, Alloy 20) | Extreme temperature applications | |
| Trim Materials | 410 / 420 stainless steel | High-temperature service |
| Stellite hard-faced trims | High wear / erosion resistance | |
| Tungsten carbide coatings | Erosion-resistant applications | |
| Seat Materials | Graphite | High-temperature sealing |
| Metal-to-metal | Extreme heat, abrasive media | |
| High-performance alloys | Extreme heat and demanding applications |
Selecting Packing Systems for Extreme Heat
- Flexible graphite: 450–650°C, stable under pressure.
- Die-formed graphite rings: Uniform sealing, ideal for steam and refinery units.
- Hybrid graphite/PTFE: Lower friction for moderate high-temperature service.
- Live-loaded packing: Maintains seal force during thermal cycles.
Stem alignment, medium compatibility, temperature rating and emission requirements (API 622, ISO 15848) are all contributing elements.

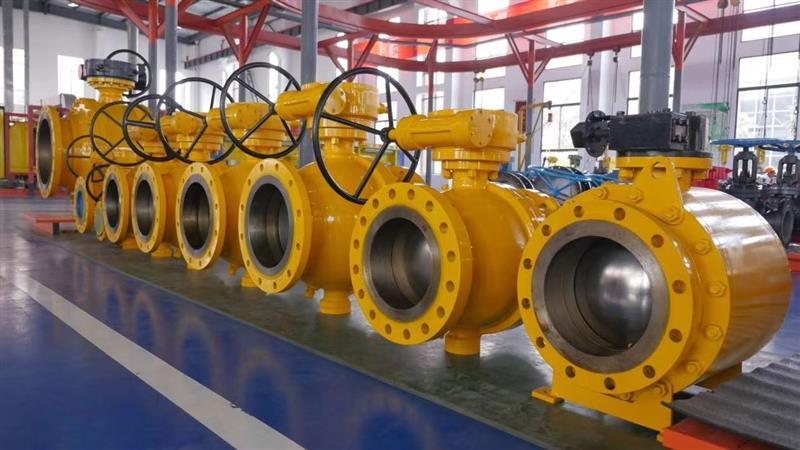

Comparing Valve Options for High-Temperature Duty
| Valve Type | Temperature Range | Application | Notes |
| Metal Seated Ball Valve | Up to 600°C | Gases, steam, high cycle | Tight shutoff |
| Gate Valve | 425–600°C | Steam isolation | Minimal pressure drop |
| Globe Valve | Up to 550°C | Throttling | Precise control |
| Triple Offset Butterfly | Up to 600°C | High-cycle operation | Fire-safe design |
| High-Temperature Check Valve | Up to 550°C | Non-return | Prevents backflow |
Optimizing Valve Selection for Thermal Cycling and Pressure Fluctuations
Pressure variations and repeated heating and cooling are typical problems for high temperature systems.
- Metal-seated valves resist wear and deformation under thermal cycles.
- Soft or polymeric seats may compress or lose form in fluctuating conditions.
- Torque increases with thermal expansion; actuators must handle variable loads.
- Trim and packing materials should resist creep, fatigue, and erosion.
- Valves must be rated for peak pressures to ensure minimal leakage.
Evaluating cycle frequency, pressure changes, and media type helps engineers choose valves that provide stable operation and reliable sealing.
How Extreme Heat and Pressure Affect Different Valve Seats
Under high temperatures and pressures, valve seats behave differently and affect flow and sealing.
Metal Seats
- Maintain integrity at very high temperatures
- Resist wear from abrasive fluids
- Handle thermal cycling and high-pressure drops
- Ideal for severe-service applications
Graphite / Soft Seats
- Bubble-tight shutoff under moderate temperatures
- Best for clean fluids and utility lines
- Sensitive to over-temperature or pressure spikes
- Require lower operating torque
When to Choose High-Temperature Valves
Select high-temperature-rated valves when:
- High operating temperatures: Use valves rated for 250–300°C or above, where standard seats may deform or lose sealing efficiency.
- Superheated fluids: Suitable for thermal oil, superheated steam, or other media affecting valve operation and torque.
- High-pressure systems: Essential when pressures go over 600, keeping structural integrity and sealing under high loads.
- Seat performance concerns: Select when soft seats risk failure or deformation, requiring robust metal or high-performance seats.
- Safety compliance: Required for processes needing fire-safe certification to meet critical safety and regulatory standards.
Industrial Applications
High-temperature valves are widely used in:
- Power generation (superheated steam lines)
- Refining units and cracking furnaces
- Petrochemical reactors and thermal oil systems
- Gas processing plants
- Steel and metallurgical processes
- Exhaust and high-temperature ventilation systems
Safe and effective functioning depends on choosing the correct valve for high temperature uses. To guarantee valves function dependably under high heat, engineers have to take into account material performance, seat and trim design, torque requirements and pressure temperature ratings. Weather gate, globe, ball , butterfly or check form, high temperature valves have to resist thermal cycling, corrosive materials, and flow changes without affecting sealing or control. Certifications such as API, ASME, ISO and PED confirm their adherence and performance.
To prevent early wear it also becomes important to assess peak operating conditions instead of average temperature. Choosing the appropriate sealing system helps to keep stability during pressure spikes and quick temperature changes. Engineers can select valves with consistent flow, less leakage and best process control across refineries, power plants and thermal oil systems by carefully assessing system temperature, media properties and application needs.
