Gate valves are isolation valves designed to provide unobstructed flow when fully open and dependable shutoff when closed. As a gate valve manufacturer in India, Speciality Valve manufactures these valves for systems where straight-through flow, minimal pressure loss, and reliable isolation are critical. Gate valves operate using a linear motion mechanism, making them ideal for on-off service rather than flow regulation. This blog explains the fundamentals of gate valve design and working principles, key construction features, performance characteristics, typical applications, and essential selection criteria. The objective is to help engineers and procurement professionals select gate valves that meet operating conditions, applicable standards, and long-term reliability expectations.

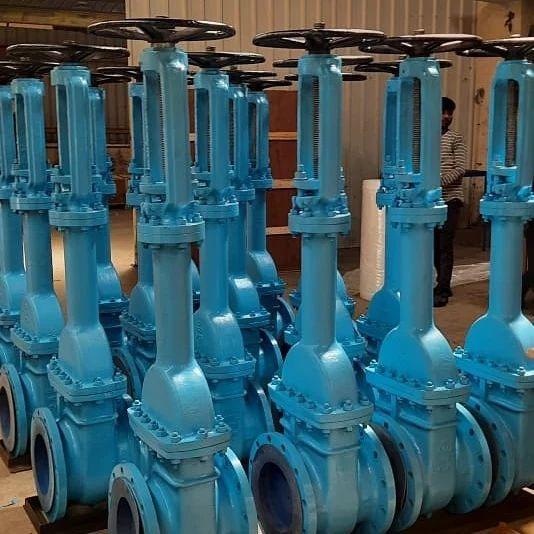

Overview of Gate Valve
Starting or stopping the fluid flow is accomplished via a gate valve, which uses either flat or wedge-shaped gate. Opening or closing the gate with a linear motion lifts or lowers it to allow passage.
Key Functional Points:
- Full flow capability: The gate retracts completely when completely open, therefore negligible pressure drop.
- Reliable shutoff: When closed, the gate wedges tightly against the seats to stop flow.
- On-off operation only: Gate valves are not intended for flow control; partly open positions cause leakage, vibrations, and seat erosion.
- Position indication: Non-rising stem valves are employed in situations where space is restricted; rising stem valves let valve position be visible.
Systems needing total isolation and infrequent operation best use gate valves to guarantee consistent performance over extended periods.
How Gate Valves Work
Gate valves open or close the gate by using a threaded stem connected to a handwheel or actuator. Unlike quarter-turn valves, the motion is linear.
Basic Working Principle
- Rotating the handwheel moves the stem upward or downward
- The stem raises or lowers the gate inside the valve body
- Full opening removes the gate entirely from the flow path
- Full closing presses the gate against seats to isolate flow
Rising Stem and Non-Rising Stem Operation
- Rising stem: Stem moves visibly to indicate valve position
- Non-rising stem: Stem rotates internally; preferred for limited vertical space
Gate Valve Design Variations
Different gate valve designs are used based on pressure, temperature, and sealing requirements.
| Gate Valve Type | Design / Feature | Applications |
| Solid Wedge Gate Valve | Single-piece wedge gate | Simple construction, robust sealing, suitable for clean fluids and stable temperature conditions |
| Flexible Wedge Gate Valve | Split or flexible gate design | Compensates for thermal expansion, reduces seat binding at high temperatures |
| Parallel Slide Gate Valve | Two parallel gates with spreading mechanism | Effective in high-temperature and high-pressure services, commonly used in power plants and steam applications |
Performance Characteristics of Gate Valves
Gate valves offer specific performance advantages when used correctly.
Flow Characteristics
Gate valves are mostly made for on-off service and have very little resistance when they are fully open. Their straight-through layout guarantees little pressure loss and seamless fluid flow. They are not intended for throttling, nevertheless; partial opening can lead to flow instability, vibration, and seat damage.
Key Points:
- Full bore opening ensures minimal pressure drop.
- Straight flow path reduces turbulence.
- Not suitable for flow modulation or throttling.
Sealing Performance
Gate valves' sealing capability depends on metal-to-metal interaction between the gate and the seats. The valve is dependable for high-pressure and high-temperature uses since when totally closed it offers a safe cutoff. To stop seat damage and leakage, partial opening should be avoided.
Key Points:
- Metal-to-metal seating suitable for high-temperature service.
- Tight shutoff achieved when fully closed.
- Seat wear occurs if used in partially open position.
Temperature and Pressure Capability
Depending on design and material choice, gate valves are built to handle high temperatures and pressures. Flexible wedge designs assist to absorb thermal expansion and avoid binding; alloy steel bodies can withstand temperatures up to 600°C. This makes gate valves perfect for steam systems and rigorous industrial pipelines.
Key Points:
- Suitable for temperatures up to 600°C with alloy steels.
- Handles high-pressure steam, oil, and gas systems.
- Flexible wedge designs manage thermal expansion effectively.
Technical Specifiactions
| Parameter | Specification / Range |
| Valve Type | Solid wedge, flexible wedge, parallel slide |
| Body Materials | Carbon steel, stainless steel, duplex steel, alloy steel |
| Seat Materials | Metal (stainless steel, alloy), flexible wedge options |
| Pressure Class | ASME/ANSI Class 150–2500 |
| Temperature Range | Up to 600°C (depending on alloy or design) |
| Flow Characteristics | Full bore opening; straight flow path; not suitable for throttling |
| Sealing Performance | Metal-to-metal seating; tight shutoff when fully closed; partial opening may cause wear |
| Stem Type | Rising stem (visual position); Non-rising stem (space-limited applications) |
| End Connections | Flanged, welded, or threaded |
| Valve Sizes | DN15 to DN2000 (depending on design and pressure rating) |
| Actuation Methods | Manual, gear-operated, or motorized |
| Common Applications | Steam lines, high-pressure pipelines, oil & gas, chemical process systems |
Choosing gate valves wisely depending on pressure, temperature, material, and size guarantees dependable operation and long-term system safety. These criteria enable engineers to create robust, effective pipelines for challenging industrial uses.
Standards and Testing Requirements
Gate valves are designed and tested according to international standards to ensure safety and performance.
Key standards include:
- API 600 / API 602: Design and manufacturing requirements
- ASME B16.34: Pressure–temperature ratings
- API 598: Seat leakage and pressure testing
- ISO 5208: Leakage classification and testing
- API 607: Fire-safe testing for critical services
Compliance with these standards is essential for regulatory acceptance and long-term reliability.
Common Industrial Applications of Gate Valves
Gate valves are used in industries where isolation under high pressure or temperature is required.
Typical applications include:
- Oil & gas transmission pipelines
- Refinery process lines
- Power plant steam systems
- Water distribution and treatment networks
- Chemical and petrochemical plants
- Mining slurry lines (with appropriate trim)
Their ability to provide full flow and tight isolation makes them suitable for mainline isolation duties.
How to Select a Gate Valve for High Pressure & Temperature Systems
For systems running at high pressure and temperature, choosing the correct gate valve is absolutely essential. Important points to think about are:
- Pressure & Temperature Ratings: Verify the valve can withstand the highest temperature and pressure of the system.
- Material Selection: Select seat and body components suitable for operating circumstances and the fluid.
- Gate Type: Depending on pressure needs and thermal expansion, solid, flexible, or parallel slide gates are used.
- Stem & Bonnet Design: Rising or non-rising stems according on space and maintenance requirements.
- Actuation & Connections: Manual, gear-operated, or motorized actuators; flanged, threaded, or welded ends.
Choosing wisely guarantees trustworthy isolation, little maintenance, and long-term system safety.
Conclusion
Gate valves play a critical role in industrial piping systems by providing reliable isolation with minimal flow resistance. Understanding their design types, working principles, material options, and performance limits helps engineers select valves that perform safely under demanding pressure and temperature conditions. Proper application, correct sizing, and adherence to international standards ensure long-term durability and consistent system performance. For projects requiring dependable isolation in critical services, gate valves remain a proven and widely adopted solution.
If you are evaluating a gate valve for high-pressure, high-temperature, or critical isolation service, you can share your operating conditions with the technical team at Speciality Valve for application-specific guidance and selection support.
