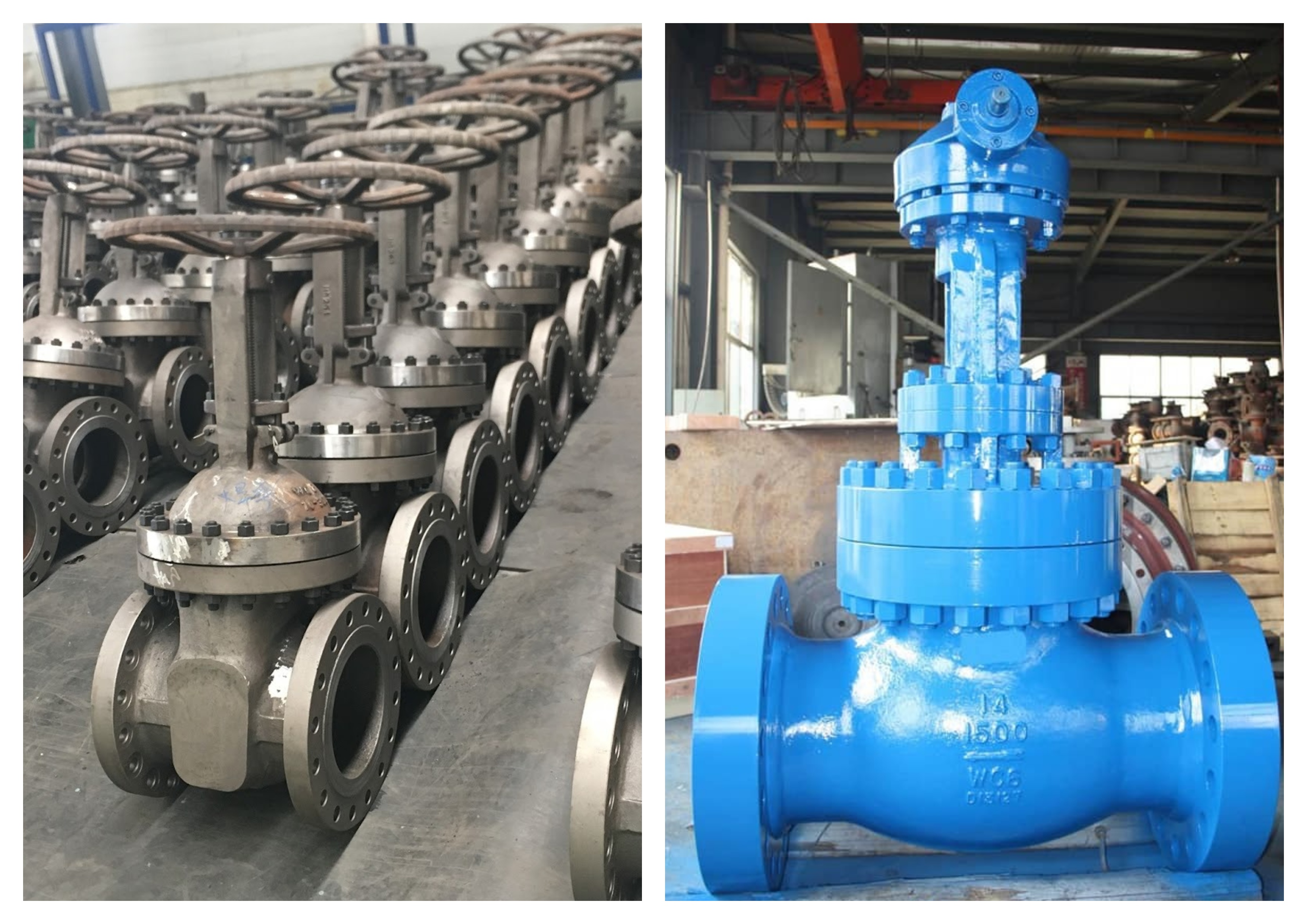

Industrial valves are essential components in controlling the flow of liquids, gases, and steam in pipelines and process systems. Among these, valves made of Cast Steel and Forged Steel distinguish themselves for their extensive usage in applications needing high pressure and temperature. Leading industrial valve solutions platform Speciality Valve helps procurement specialists and engineers to grasp the nuances between these two valves. As a prominent Forged Steel and Cast Steel Manufacturer in India, one must examine their contrasts, flow properties, operational compatibility and applications across several industries.
Although they have the same goals, their performance differs greatly according to the operating environment, material characteristics and system demands. Understanding these distinctions guarantee maximum system design and long-term operating effectiveness.
Why These Valves Are Often Compared
Overlapping of application in industries like oil & gas, petrochemical, power and chemical processing causes Forged steel and Cast steel valves to be evaluated side by side. The key factors prompting comparison include:
- Mechanical strength under high pressure
- Resistance to temperature extremes
- Compatibility with corrosive media
- Manufacturing process and structural integrity
- Compliance with international standards
Forged steel valves typically do well in high-pressure systems because they are thick and have a consistent structure, whereas Cast steel valves are better for situations where the shapes are complicated or the diameters are bigger.
Design and Operation Differences
| Feature | Forged Steel Valves | Cast Steel Valves |
| Manufacturing Process | Shaped from a solid steel billet using heat and pressure | Molten steel poured into molds to form the valve body |
| Metallurgy | Fine-grain structure, better fatigue resistance | Coarser grain, potential porosity or voids |
| Structural Integrity | Minimal cavities, uniform wall thickness | Potential microscopic imperfections |
| Size Range | Small to medium-sized valves (DN15–DN300) | Larger sizes possible (DN50–DN1200) |
| Machining Requirements | High precision required for finishing | Moderate machining, depends on mold accuracy |
Forged steel valves typically exhibit more resistance to mechanical stress and cyclic pressure because of their improved grain structure. Cast steel valves need rigorous quality inspections to look out for casting flaws even if they let designers create larger and more complex valve bodies.
Standards and Compliance Considerations for Forged and Cast Steel Valves
Valve material affects both performance and compliance with industry standards.
- API Standards (API 600, API 602): Define requirements for high-pressure gate and globe valves, including tensile strength and impact testing.
- ASME Standards (ASME B16.34): Cover flanged, threaded, and welded-end valves, specifying material grades, pressure classes, and testing requirements.
- Forged Steel Valves: Often meet higher pressure classes and stricter mechanical tests due to their uniform structure.
- Cast Steel Valves: Require radiographic inspection and chemical verification to ensure structural integrity, especially in high-pressure applications.
Compliance with these standards ensures safe and efficient operation in oil, gas, power, and chemical industries.
Flow Characteristics
Flow characteristics differ between the two valve types due to internal geometry and material properties:
| Characteristic | Forged Steel Valves | Cast Steel Valves |
| Flow Path | Straight-through, smoother flow | Can accommodate complex geometries |
| Pressure Drop | Lower, due to uniform walls | Slightly higher, especially in larger valves |
| Cv (Flow Coefficient) | High and predictable across sizes | Variable; influenced by mold precision |
| Turbulence Impact | Minimal, maintains laminar flow | Can generate local turbulence in complex flow paths |
While cast steel valves are appropriate for uses where little changes in flow are acceptable, forged steel valves tend to retain constant Cv values even under varying pressures. Flow efficiency is also affected by body contours, stem arrangement, and valve seat construction.
Temperature & Corrosion Resistance: Best Material for Extreme Conditions
- Forged steel valves: Alloy steels can function above 800°C; carbon steel variations can handle up to 600°C. Stainless steel forged valves stand up to strong chemicals like hydrochloric acid, sulfuric acid, and concentrated alkalis.
- Cast steel valves: For carbon steel, it's usually good for temperatures up to 500°C; for alloy steel, it's good up to 700°C. Alloy makeup and casting quality determine corrosion resistance.
| Material Attribute | Forged Steel | Cast Steel |
| Max Operating Temperature | 600–800°C | 500–700°C |
| Corrosion Resistance | High with alloying & heat treatment | Moderate; depends on casting quality |
| Thermal Shock Resistance | Excellent, tolerates rapid changes | Lower; risk of stress concentration |
| Chemical Compatibility | Broad range, including aggressive acids | Moderate; better for neutral or mildly corrosive fluids |
Uniform grain structure makes forged steel valves usually preferred for hydrocarbon services, chemical injection, or high-pressure steam. For medium-pressure water, industrial pipelines, and wastewater, cast steel valves are useful.
Which Valve is Ideal at What Time
Correct valve selection depends on application type, pressure, and pipeline requirements. Typical recommendations include:
- High-pressure oil and gas pipelines: Forged steel valves are ideal because of their excellent structural strength and fatigue resistance.
- Steam systems in power plants: Forged steel valves effectively manage high-temperature steam.
- Large-diameter water treatment pipelines: For their capacity to handle more diameters and intricate geometries, cast steel valves are favored.
- Moderate-pressure chemical lines: For less severe settings, cast steel valves perform well.
- Heat exchangers or boiler feed lines: High-pressure, high-temperature operation calls for forged steel valves.
Technical Specifications
| Parameter | Forged Steel Valves | Cast Steel Valves |
| Size Range | DN15–DN300 | DN50–DN1200 |
| Pressure Ratings | ANSI Class 150–2500 | ANSI Class 150–1500 |
| Material Grades | Carbon Steel (A105, A350 LF2), Alloy Steel (A182 F11, F22), Stainless Steel (CF8, CF8M) | Carbon Steel (A216 WCB, A351 CF8), Alloy Steel (A217 WC9) |
| End Connections | Flanged, Threaded, Welded | Flanged, Threaded, Welded |
| Maximum Pressure | 420 bar | 250 bar |
| Wall Thickness Uniformity | High | Moderate |
| Fatigue Resistance | Excellent | Moderate |
| Typical Applications | Oil & gas pipelines, steam lines | Water treatment, industrial pipelines |
| Testing Standards | Hydrostatic, PMI, Radiography | Hydrostatic, PMI, Radiography |
When to Choose Which Valve
Choosing the right valve type depends on several operational factors:
- High-pressure systems: Due to their structural strength and wear resistance, forged steel valves are preferred.
- Large-diameter pipelines: Cast steel valves fit because casting lets for bigger body sizes without a lot of machining.
- Extreme temperature operations: Steel valves made by forging can handle more heat and changes in temperature that happen quickly.
- Cost and manufacturing considerations: For big diameters, cast steel valves are usually more cost-effective since they waste less raw materials.
Engineers can choose the valve that satisfies design and performance criteria by closely examining pressure, size, temperature, and fluid characteristics.
Conclusion
Depending on design, flow, temperature, pressure, and material qualities, forged steel and cast steel valves have different uses. While cast valves permit more complicated geometries at moderate pressures, forged valves offer great structural integrity and fatigue resistance. Optimizing industrial systems depends on an awareness of variations in material behavior, manufacturing techniques, and performance features.
For application-specific valve selection or guidance on pressure, temperature, and material choices, the technical team at Speciality Valve can provide detailed recommendations to ensure alignment with operational requirements.
